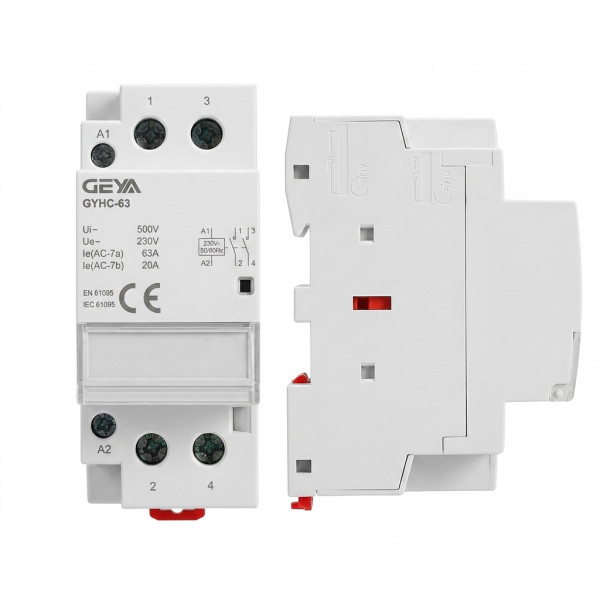

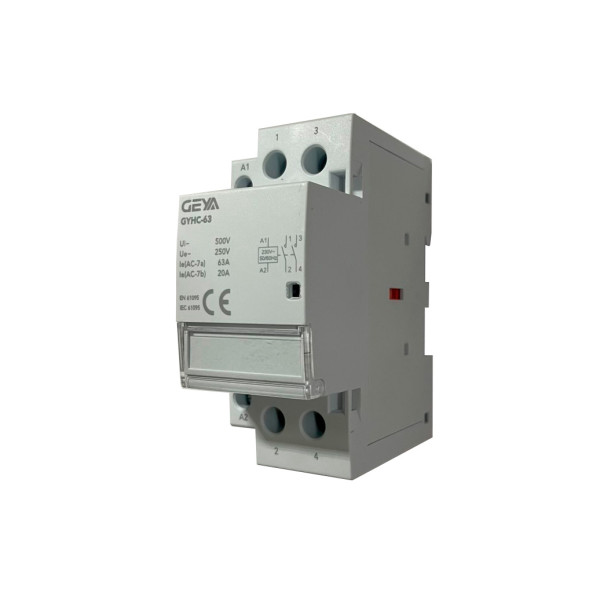

GEYA GYHC-63A Modular Power Contactor (2NO, 230V)

The GEYA GYHC-63A Modular Power Contactor is designed for high-capacity remote control, switching, and automation of electrical loads in single-phase grids. With a robust rated operational current of up to 63A, this device is the perfect solution for managing electric boilers, heavy-duty heating elements (heaters), air conditioning systems, water pumps, as well as for high-power Automatic Transfer Switch (ATS) configurations and industrial automation. Featuring two normally open contacts (2NO) and a 230V control coil, its standard modular housing allows for straightforward installation inside electrical consumer units alongside standard circuit breakers.

Features:

• High switching capacity with a rated operational current up to 63A

• Compact modular design occupying 2 standard DIN modules (36mm width)

• Mechanical front-panel status indicator for real-time contact position tracking

• Ultra-quiet operation with significantly reduced hum and vibration levels

• Enhanced electrical and mechanical endurance for rigorous long-term duty cycles

• Simple and secure snapshot mounting on standard 35mm DIN-rails

Specifications:

• Device Type: Modular AC Power Contactor

• Model: GYHC-63

• Pole Configuration / Contacts: 2 Poles / 2NO (Normally Open)

• Rated Operational Current (AC-7a): 63A (for resistive loads, heating elements)

• Rated Operational Current (AC-7b): 20A (for inductive loads, motors)

• Control Coil Voltage: AC 230V (50/60 Hz)

• Rated Insulation Voltage (Ui): 500V

• Rated Operational Voltage (Ue): 230V

• Standards & Compliance: EN 61095, IEC 61095, CE

Package Includes:

• GEYA GYHC-63A 2NO Modular Contactor

• Original Packaging
