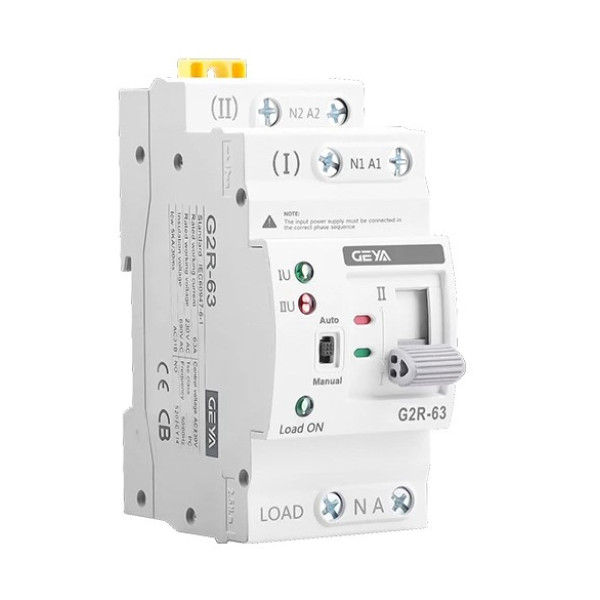

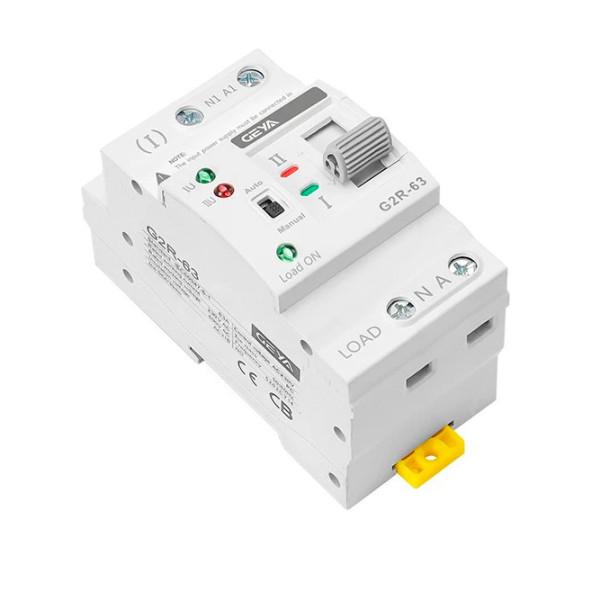

GEYA G2R-63 Dual Power Automatic Transfer Switch (2P, 63A)

The GEYA G2R-63 Dual Power Automatic Transfer Switch (ATS) is engineered for safe and seamless power transition between the primary and backup power sources. This PC-class device featuring a dual-station design guarantees ultra-fast transfer times under 50 milliseconds during grid power failures, ensuring uninterrupted operation for home appliances, workstations, servers, or solar setups. The switch provides both fully automatic operation and manual control via the integrated toggle handle. It is designed for simple and reliable installation inside standard electrical cabinets on a 35mm DIN-rail.

Features:

• High-speed automatic transfer between power sources in less than 50ms

• Dual operation modes: fully automatic transfer or manual control override

• Secure mechanical and electrical interlocking system to prevent simultaneous connection

• Clear LED status indicators for active power lines on the front panel

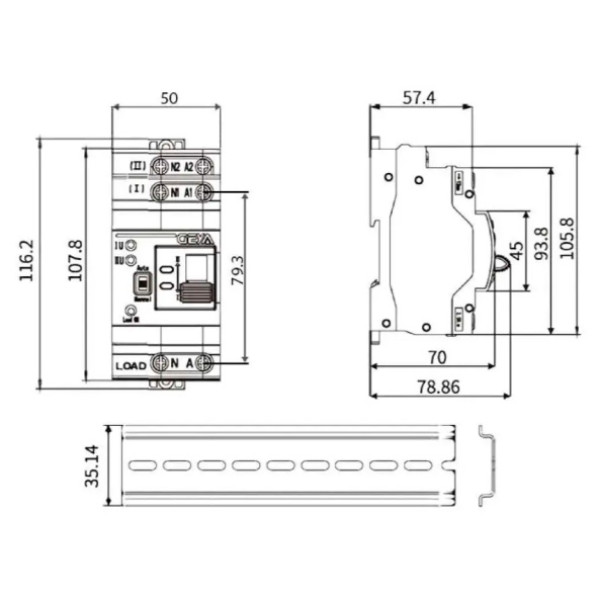

• Compact modular housing tailored for standard 35mm DIN-rail installation

• Heavy-duty build with a high level of insulation for maximum security

Specifications:

• Device Type: Automatic Transfer Switch (ATS) / Power Selector Switch

• Model: G2R-63

• Number of Poles: 2P (for single-phase systems)

• Rated Working Current: 63A

• Rated Operational Voltage: AC 220V (50/60 Hz)

• Insulation Voltage: 690V

• Transfer Time: less than 50ms

• Device Class: PC Class (capable of making and withstanding short-circuit currents)

• Short-Circuit Breaking Capacity: 50kA

• Mechanical Life: 8000 cycles minimum

• Electrical Life: 1500 cycles minimum

Package Includes:

• GEYA G2R-63 2P Automatic Transfer Switch

• Original Packaging

Tags: geya, ats, automatic transfer switch, g2r-63, dual power switch, backup power, generator switch, inverter setup, din-rail switch
