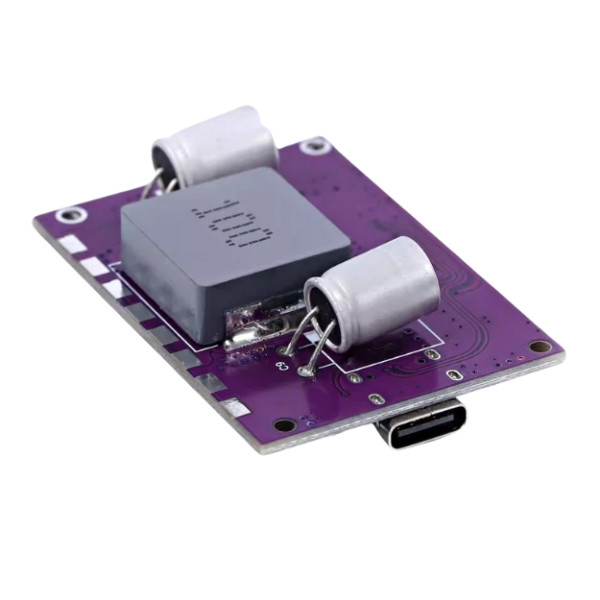

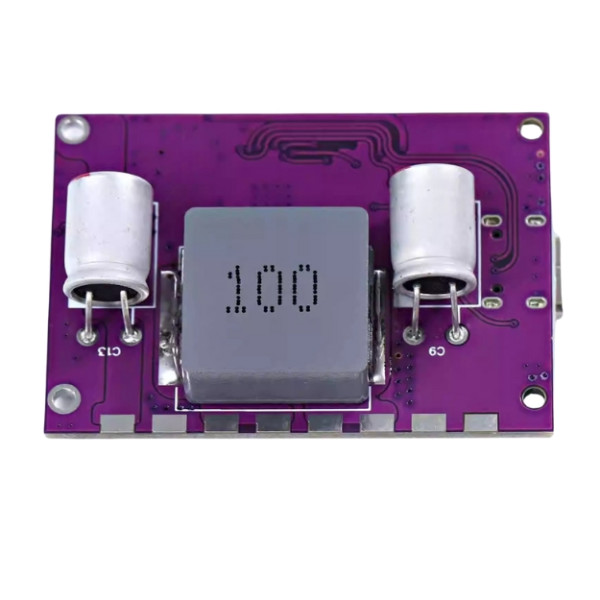

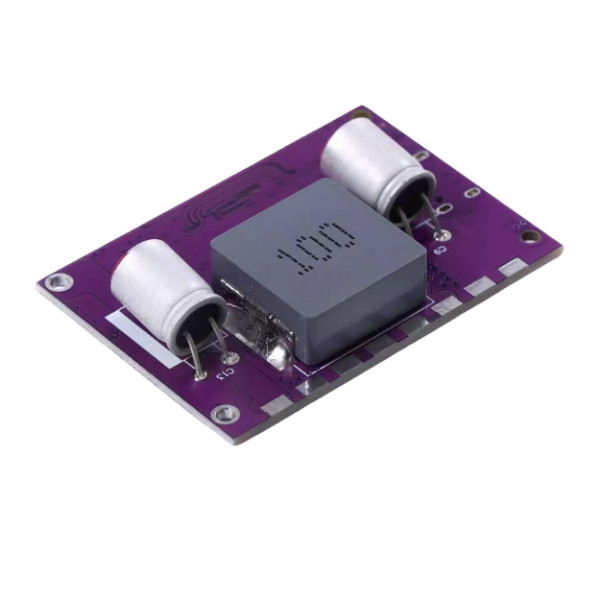

PowerBank IP2368 PD100W LI-ion / LiFePO4 Module

IP2368 supports 2/3/4/5/6 series connection of battery cells, the number of series connections can be selected through an external resistor. IP2368 supports the choice of ordinary lithium batteries and lithium iron phosphate batteries, an external resistor can set the full charge voltage. The full charge voltage of lithium batteries can be set to: 4.15V / 4.2V / 4.3V / 4.35V / 4.4V. The full charge voltage of lithium iron phosphate batteries can be set to: 3.5V / 3.55V / 3.6V / 3.65V / 3.7V.

Manufacturer: China

for 2-6 LI-ion / LiFePO4 batteries (set by soldering)

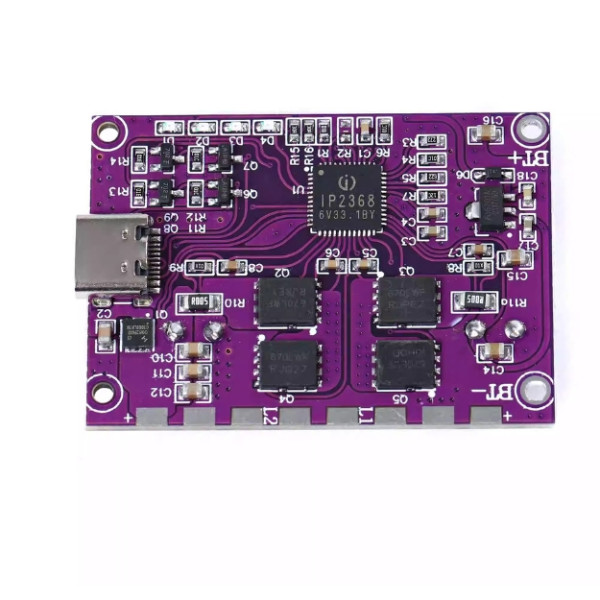

Specific change methods:

R2 empty = ordinary lithium battery - default;

R2 short circuit = lithium iron phosphate battery.

Setting the number of series connections of batteries R7:

6.2 kOhm = 2 in series;

9.1 kOhm = 3 in series;

13 kOhm = 4 in series - default;

18 kOhm = 5 in series;

27 kOhm = 6 in series.

Setting the battery capacity with R5:

6.2 kOhm = 5000 mAh - default;

12.4 kOhm = 10000 mAh;

18.7 kOhm = 15000 mAh;

24.9 kOhm = 20000 mAh;

30.9 kOhm = 25000 mAh.

Technical specifications:

chip: IP2368;

maximum output power: 100 W;

protocol support: AFC / FCP / PD2.0 / PD3.0;

interface: type-C;

overall dimensions: 49x34x13 mm.
