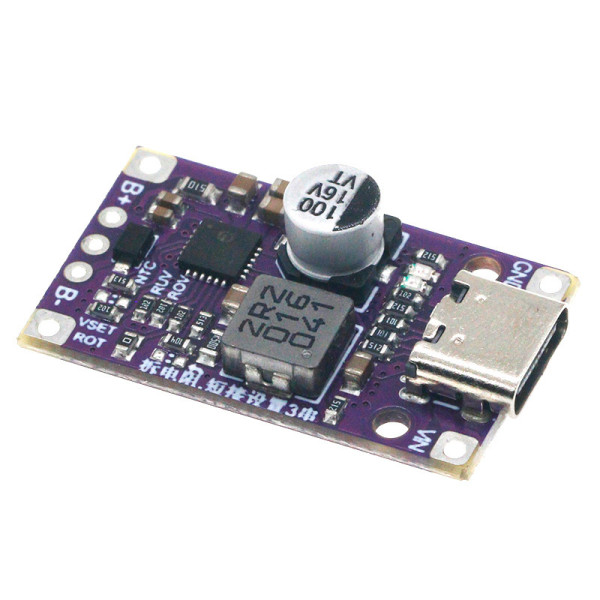

IP2326 BMS 2S 4A Charging Controller for 2x Li-ion 18650 7.4V LX-LISC-V3

The IP2326 LX-LISC-V3 charging board is designed for 2× Li-ion 18650 (7.4V) battery packs. Thanks to Quick Charge (QC) support, the Type-C port automatically adjusts charging voltage, increasing efficiency and reducing charging time.

If you want to buy Type-C BMS 2S 4A, check the price, read reviews, and choose reliable radio components — this board is ideal for DIY battery packs, portable devices, and custom power solutions.

Key Features

• Balancing function for 2S battery packs

• Automatic charging voltage regulation (QC support)

• Overcurrent, overvoltage & short-circuit protection

• Adjustable charging current

• LED status indication

• High efficiency up to 94%

Technical Specifications (LX-LISC-V3)

• Chip: IP2326 (QFN24)

• Input Voltage: 5V Type-C

• Battery Support: 2S / 3S Li-ion

• Typical Charging Current (2S): 1.4–1.5A

• Default Charge Current: 0.9A (100K)

• Output Power: 15W

• Switching Frequency: 500 kHz

• Charging Efficiency: 94%

• Dimensions: 31 × 18 × 6.9 mm

Interface Pins

• VIN – Power supply positive

• GND – Power supply negative

• B+ – Battery pack positive

• B- – Battery pack negative

• BM – Middle point of 2S battery (balancing connection)

LED Indicator
