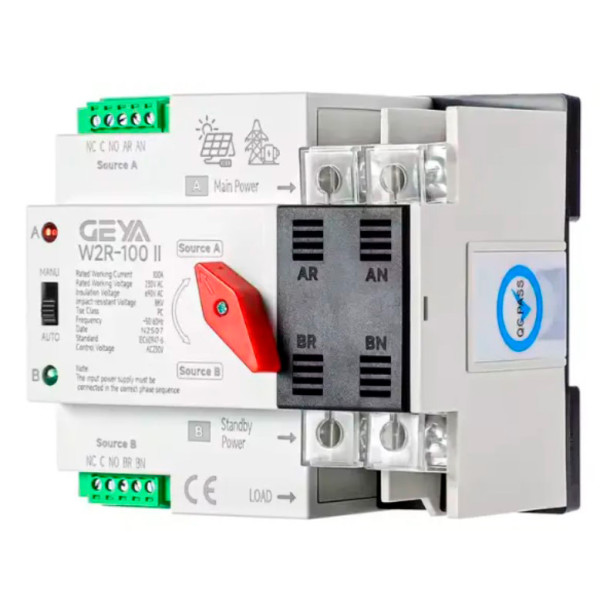

GEYA W2R-100 II Dual Power Automatic Transfer Switch (2P, 63A, Grey Solar Series)

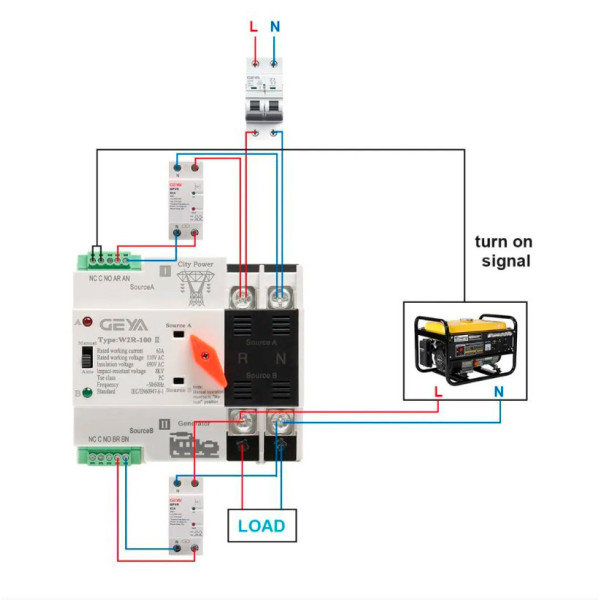

The GEYA W2R-100 II Dual Power Automatic Transfer Switch (ATS) from the Grey Solar Series is engineered for highly reliable power transition in solar energy systems, home inverter setups, and backup generator grids. Rated under the strict AC-33iB utilization category, this PC-class device is fully capable of handling complex mixed and motor loads safely. It delivers high-speed automatic transfer between the primary line (inverter/solar system) and the secondary line (utility grid) in less than 50 milliseconds, ensuring sensitive domestic appliances, home servers, and routers operate seamlessly without shutting down or rebooting. The ATS provides both fully automatic operations and manual control override.

Features:

• Optimized for solar power systems, home inverters, and automated backup loops

• Advanced AC-33iB utilization category rating for robust handling of mixed and inductive loads

• Seamless ultra-fast transfer under 50ms protects electronic appliances from reboots

• High short-circuit durability with a rated conditional short-circuit current (Iq) of 50kA

• Two integrated operation modes: automatic transfer or manual toggle handle override

• Dual front panel LED indicators for continuous active line tracking (Source A / B)

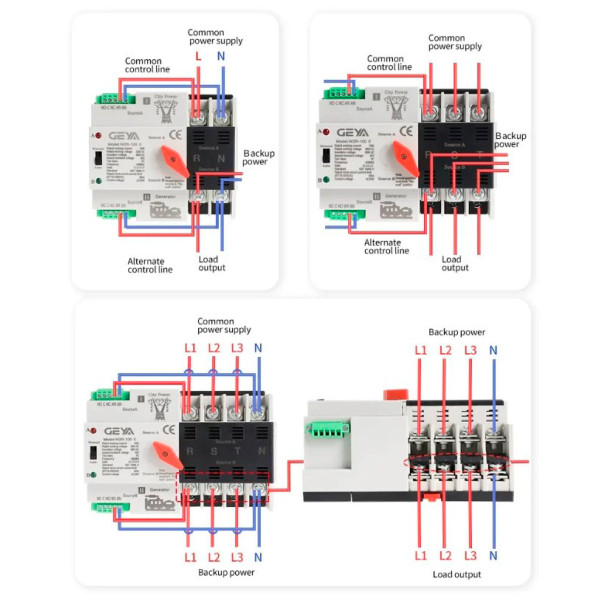

• Includes complete wiring accessory package for rapid control circuit connection

Specifications:

• Device Type: Automatic Transfer Switch (ATS) / Power Selector Switch

• Model: W2R-100 II (Grey Solar Series)

• Pole Configuration: 2P (Single-Phase systems)

• Rated Working Current (Ie): 63A

• Rated Operational Voltage (Ue): AC 400V (perfectly compatible with 220V/230V grids)

• Insulation Voltage (Ui): AC 690V

• Utilization Category: AC-33iB

• Rated Conditional Short-Circuit Current (Iq): 50kA

• Impact-Resistant Impulse Voltage: 8kV

• Transfer Time: less than 50ms

• Service Life: Electrical — 2000 cycles, Mechanical — 5000 cycles

• Control Circuit: Rated Voltage Us — AC 220V, 50Hz (operational range 85%–110% Us)

• Operational Temperature Range: -5 °C to +40 °C (24h average below 35 °C)

• Device Net Weight: 0.62 kg

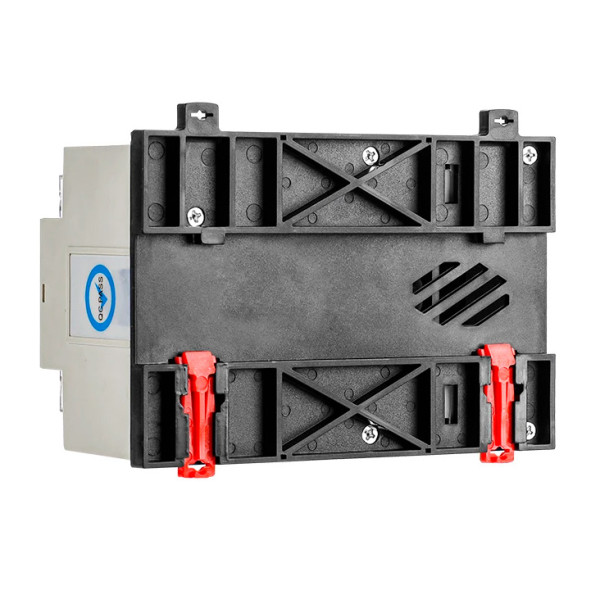

• Installation: 35mm standard DIN-rail mount

Package Includes:

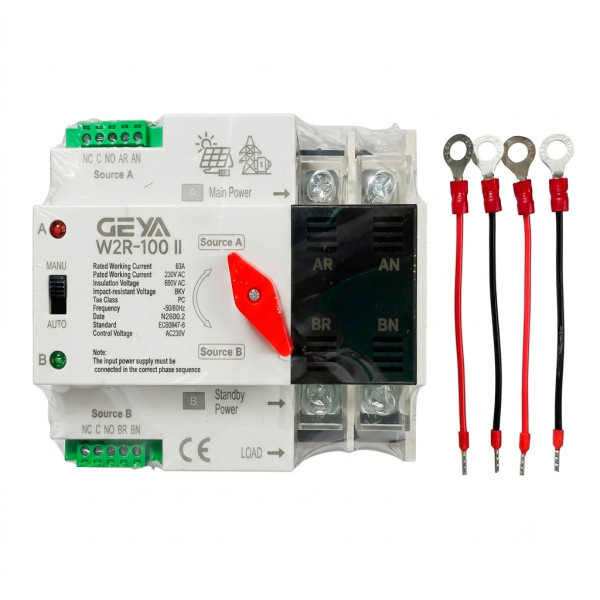

• GEYA W2R-100 II 2P 63A Automatic Transfer Switch

• 4-Piece Control Connecting Wire Set with Ring Terminals

• Original Packaging
