MT3608 Boost Adjustable DC-DC module without connectors

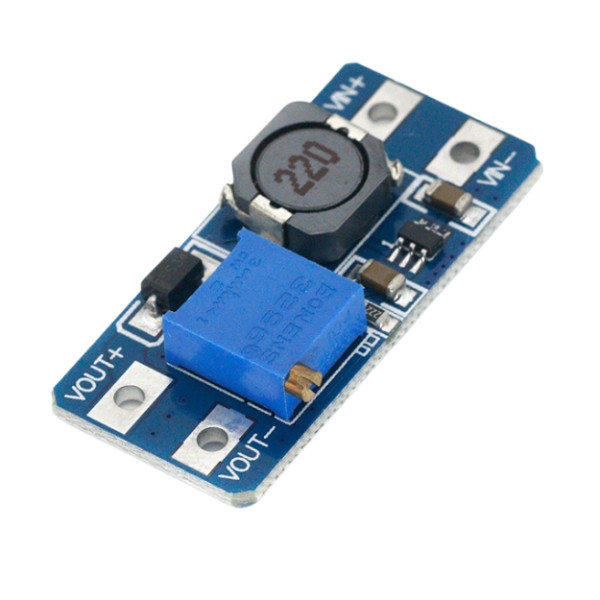

Adjustable MT3608 DC-DC Boost Converter Module without Connectors

The adjustable MT3608 DC-DC boost converter module without connectors provides a reliable and compact solution for voltage conversion and regulation in your projects and devices. This module integrates easily thanks to its wide input voltage range and high efficiency.

Advantages:

• Wide Input Voltage Range: From 2V to 24V, allowing use with various power sources.
• Adjustable Output Voltage: From 2V to 28V, easily set via the built-in potentiometer.
• Maximum Output Current: Up to 2A, suitable for a wide range of applications.
• High Efficiency: Up to 93%, ensuring minimal energy loss.
• Compact Size: Easily integrates into various projects, especially where space is limited.

Key Specifications:

• Model: MT3608
• Type: Boost (step-up) DC-DC converter
• Input Voltage: 2V - 24V
• Output Voltage: 2V - 28V (adjustable)
• Output Current: Up to 2A (recommended up to 1A for stable operation)
• Efficiency: Up to 93%
• Connection: Solder directly, no connectors

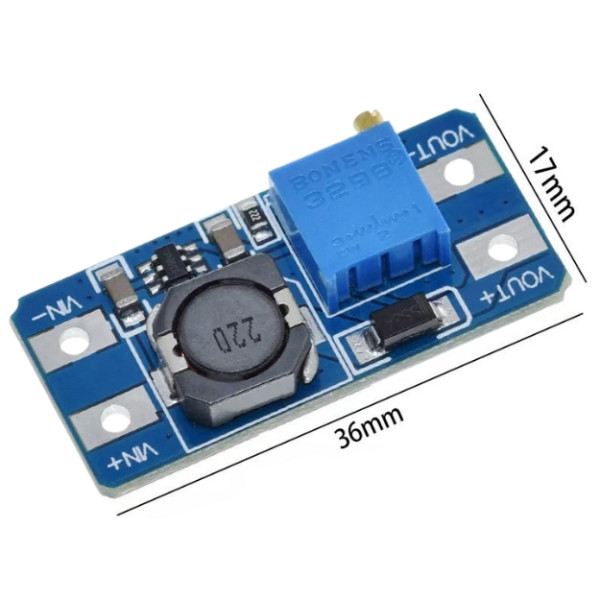

• Dimensions: 36 mm x 17 mm x 14 mm

Applications:

Ideal for:

• Powering portable devices
• Charging batteries
• Voltage boosting for electronic projects
• Use in DIY electronics and robotics

Features:

• Flexible Connection: Lack of connectors allows the module to be adapted to specific project requirements.
• Ease of Adjustment: Easily adjustable to provide stable output voltage, protecting connected devices from fluctuations.

With the MT3608 module without connectors, you get a compact and efficient solution for boosting voltage in your projects.
