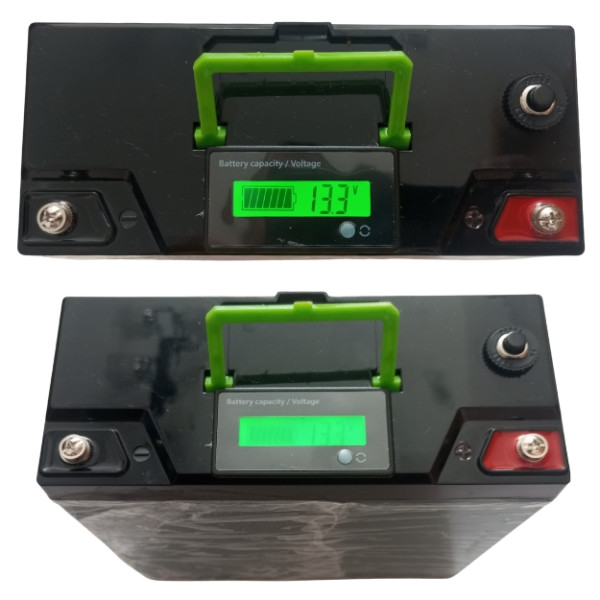

LiFePO4 12V 30A Battery with Indicator and Thermal Protection (25A)

Battery Pack with New Guoxuan 33140 3.2V 15Ah LiFePO4 Cells

Technical Specifications:

• LiFePO4 – 12V 30Ah
• Chemistry Type – Lithium Iron Phosphate.
• Assembly Type – 4S 2P.
• Actual Battery Capacity – 31-32 Ah.
• Nominal Voltage – 12.8V.
• Operating Voltage Range – 10V - 14.6V.
• Charging Voltage – 14.4-14.6V.
• Nominal Charging Current – (10A)(max. 20A via terminals).(Via connector 55.21 5A)
• Nominal Discharge Current – (20A)(peak 100A).
• Charging Temperature Range – (+5+45°C).
• Discharge Temperature Range – (-20+60°C).
• Lifespan in Buffer Mode – 10-15 years.
• In Cyclic Mode, after 2000 cycles (full) and at nominal charging and discharging currents – residual capacity 80%.
• Charging Type – CC (constant current)/CV (constant voltage).
• Protection Board BMS Controller (overcharge, over-discharge, short circuit protection in load, voltage balancing of each cell).
• Fuse with thermal protection 25A.
• Screw fasteners installed with thread locker (MOTUL blue).
• Case – ABS plastic.
• Standard Terminals M5.
• Dimensions – 18016877 mm.
• Weight – 2700 grams.

Tags: LiFePO4 battery, 12V 30A, LiFePO4, thermal protection, indicator, charging, durability
