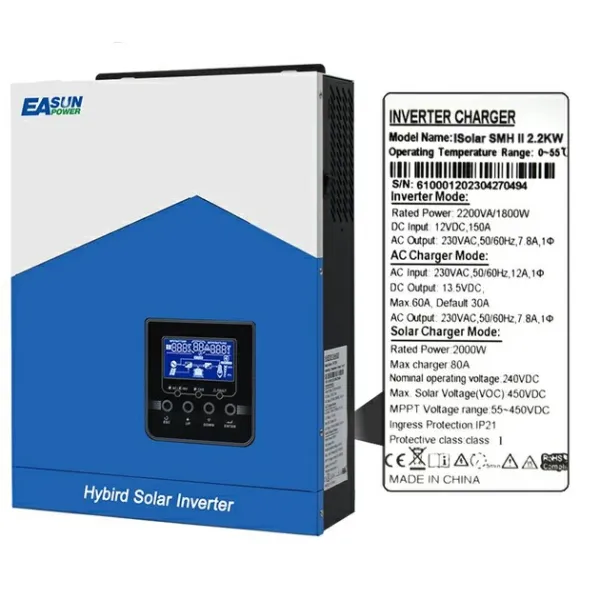

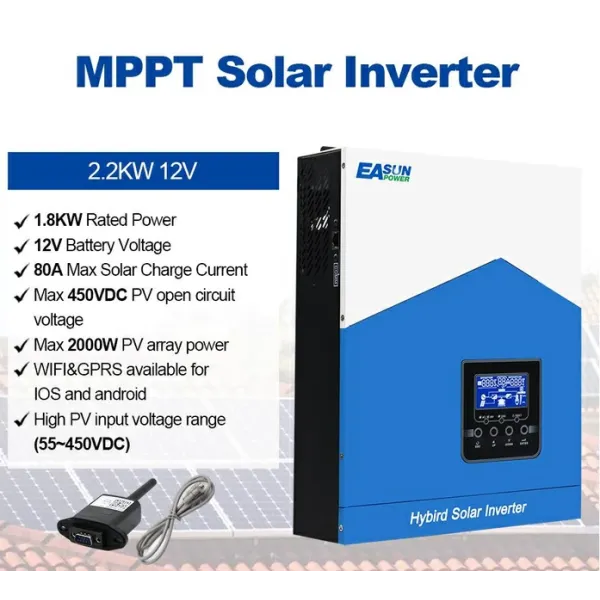

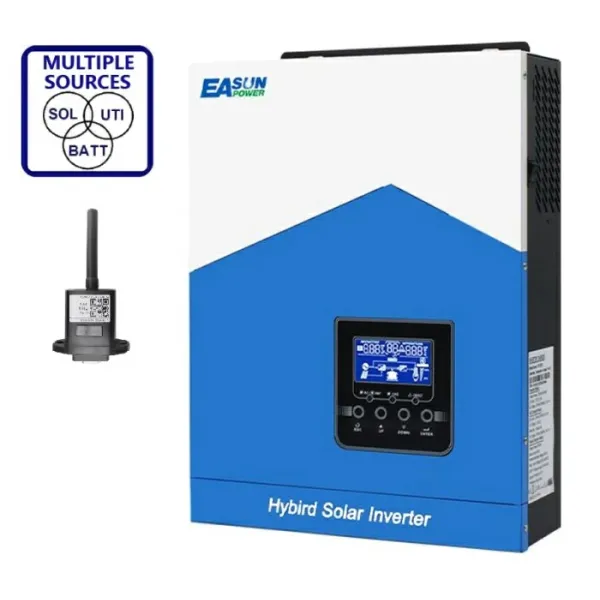

Hybrid Solar Inverter EASUN 2.2kW 12V ISolar-SMH-II-2.2KW (2200VA/1800W, Max CH 80A, AC 60)

Manufacturer:
EASUN POWER

Inverter Power (W):
1800

Inverter Voltage:
12V

System Phasing and Parallel Capability:
1 phase (L/N/PE)

Functional Features:
BMS communication

Charge Controllers (PV):
1 x MPPT

Inverter Ports:
RS232

Wireless Interfaces:
-

Operating Modes and Mixing:
SUB, SBU

Description and Specifications of EASUN 2.2kW 12V ISolar-SMH-II-2.2KW (2200VA/1800W, Max CH 80A, AC 60) Wi-Fi

The hybrid solar inverter ensures high energy efficiency and complete autonomy from the general power grid. It allows the user to store excess solar energy generated during the day in batteries for use at night or during periods of low solar generation.

Key advantages of the hybrid solar inverter:

✔ Pure sine wave inverter
✔ Adjustable input voltage range for household appliances via LCD display
✔ Adjustable battery charging current depending on application via LCD display
✔ Configurable AC/solar charger priority via LCD display

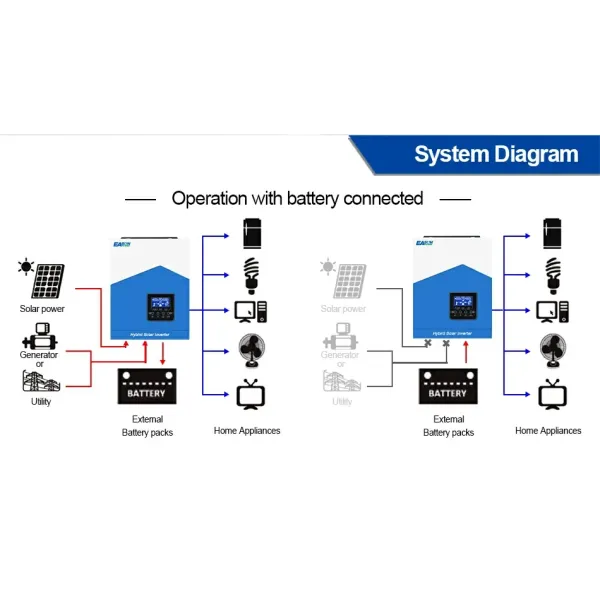

✔ Compatible with grid power or generator
✔ Automatic restart after AC power recovery
✔ Overload/overheat/short circuit protection
✔ Smart battery charger design for optimized battery performance
✔ Cold start function
✔ Wi-Fi connectivity

A battery is required for the EASUN POWER 2.2kW 12V ISolar-SMH-II-2.2KW (2200VA/1800W, Max CH 80A, AC 60) model.

Available ISolar-SMH-II-2.2KW Modifications on Our Website:

• EASUN POWER 2.2kW 12V ISolar-SMH-II-2.2KW (2200VA/1800W, Max CH 80A, AC 60) – Basic model without Wi-Fi, item no. 12501

Technical Specifications Table

INPUT

| Voltage | 230V AC |
| Selectable Voltage Range | (170V ~ 280V AC) ±2%; (90V ~ 280V AC) ±2% |
| Frequency Range | 50Hz/60Hz (Auto-detection) |

OUTPUT

| AC Voltage Regulation (Batt.Mode) | 230V AC ±5% |
| Peak Power | 4400VA |
| Automatic Transfer Time | 10ms (for personal computers) / 20ms (for household appliances) |
| Output Waveform | Pure Sine Wave |

BATTERY & CHARGER

| Battery Voltage | 12V DC |
| Floating Charge Voltage | 13.5V DC |
| Overcharge Protection | 15.5V DC |
| Maximum Charging Current | 60A |

SOLAR PANEL

| Max PV Panel Power | 2000W |
| MPPT Voltage Operating Range | 55-450V DC |
| Max Open Circuit Voltage of PV Array | 450V DC |
| Max Charging Current | 80A |
| Maximum Efficiency | 98% |

PHYSICAL PARAMETERS

| Dimensions (L x W x H) | 405 x 286 x 98 mm |
| Net Weight (kg) | 4.5 kg |
| Wi-Fi | Optional without Wi-Fi |

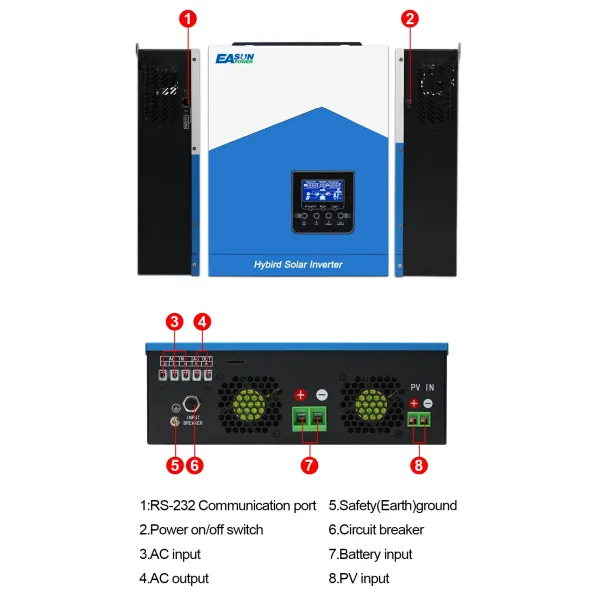

| Interfaces | RS232/RS485 (standard) |

OPERATING ENVIRONMENT

| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -15°C to 60°C |
