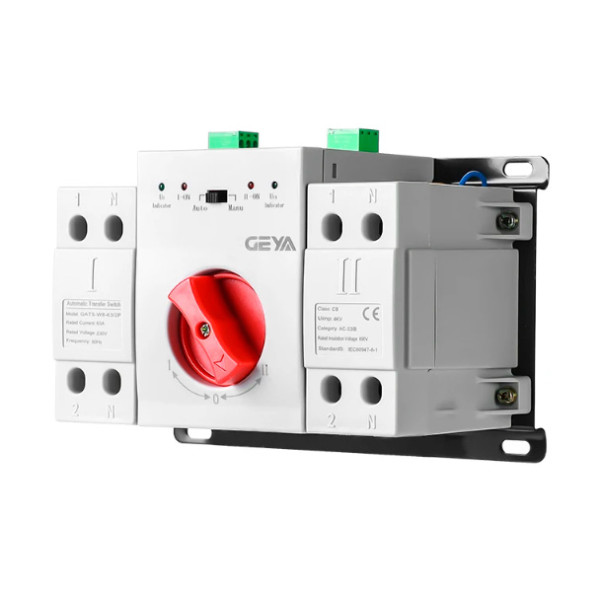

GEYA GATS-W8-632P Automatic Transfer Switch (2P, 63A)

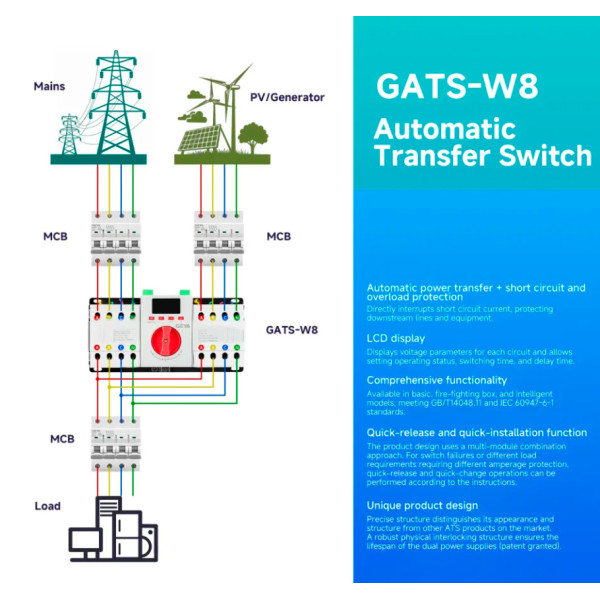

The GEYA GATS-W8-632P Automatic Transfer Switch (ATS) is engineered for seamless and secure power transition between primary and secondary energy sources in single-phase 50/60 Hz electrical grids. Belonging to the premium CB Class, this ATS features built-in overload and short-circuit protection, eliminating the need for separate circuit breakers. Certified under the stringent AC-33iB utilization category, it safely manages complex mixed loads, high-rise building lift electronics, fire systems, and domestic water pumps. The W8 series instantly detects voltage failures and transfers power within milliseconds to safeguard sensitive equipment. Designed for space-saving layouts, it offers robust screw-mounting installation, flexible Auto/Manual operational modes via a prominent rotary handle, and clear LED line status feedback.

Features:

• Advanced CB-Class Device: Combines high-speed automatic transfer with built-in overload and short-circuit fault protection

• Rigorous AC-33iB Utilization Rating: Safe and reliable performance with motor loads, inductive elements, and pumps

• Millisecond-level Seamless Auto Transition: Minimizes power gap risk for sensitive electronics

• Space-Saving Streamlined Housing: Easily fits into tight panels, lowering installation complexity

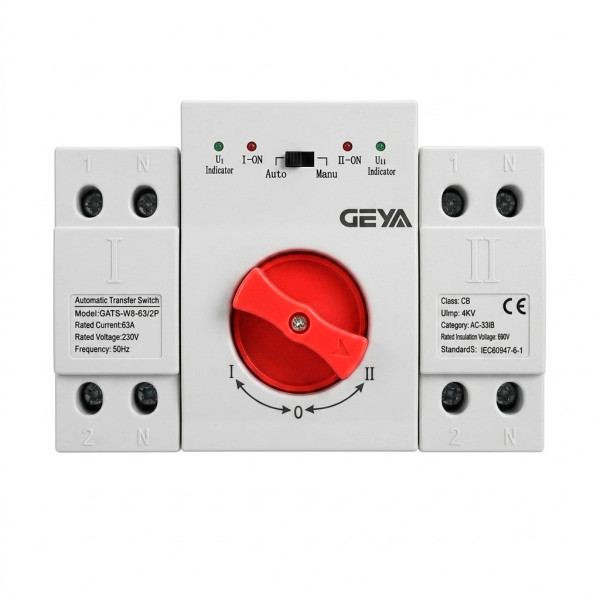

• Dual Control Capabilities: Features an Auto/Manual toggle switch paired with a heavy-duty manual rotary handle

• Comprehensive Visual Diagnostics: Dedicated UI / UII power source status LEDs and contact connection lights

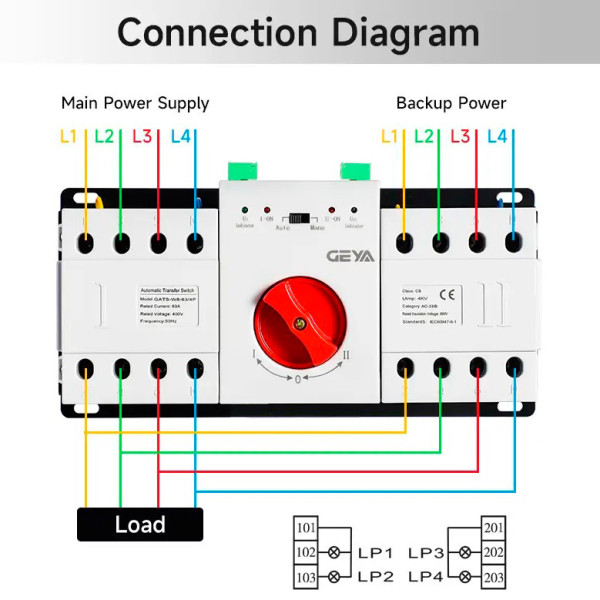

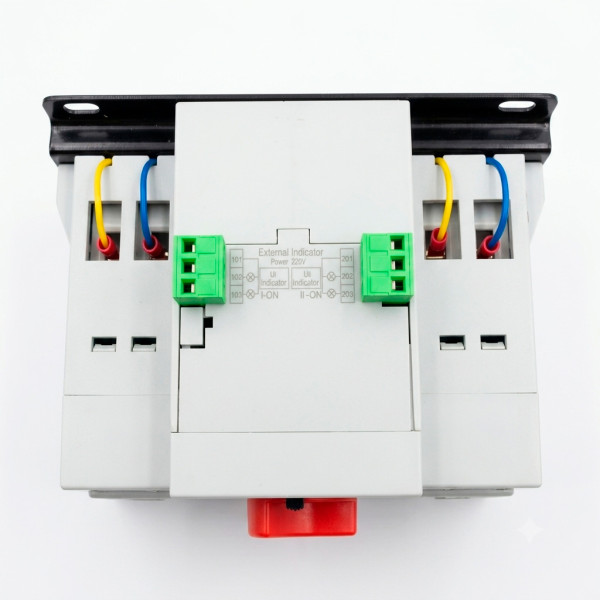

• Pre-fitted green terminal blocks for easy signaling and external monitoring layout

Specifications:

• Device Type: Protected Automatic Transfer Switch (ATS)

• Model: GATS-W8-63/2P

• Device Class: CB Class (integrated overcurrent and short-circuit defense)

• Pole Configuration: 2P (Single-Phase, Phase + Neutral)

• Rated Current: 63A

• Rated Operational Voltage (Ue): AC 230V

• Insulation Voltage (Ui): AC 690V

• Rated Impulse Withstand Voltage (Uimp): 4kV

• Utilization Category: AC-33iB

• Rated Frequency: 50/60 Hz

• Standards & Certifications: IEC60947-6-1, GB/T 14048.11, CE

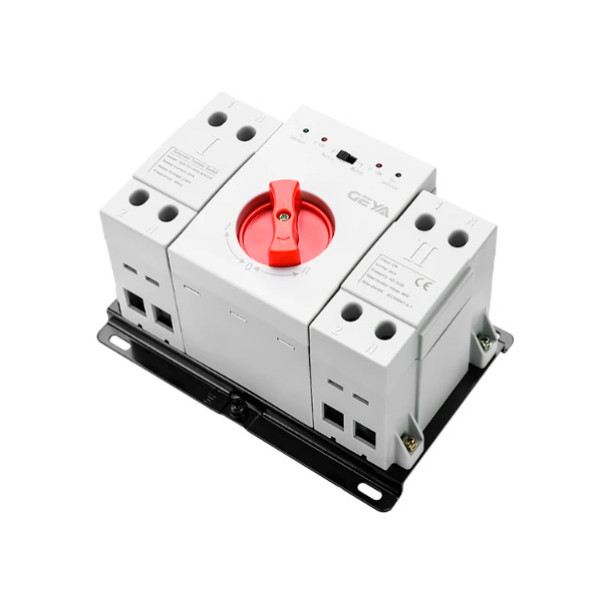

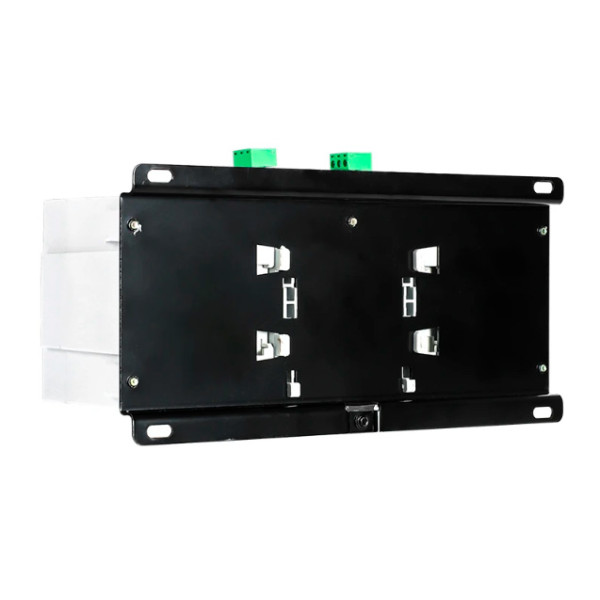

• Mounting Type: Screw mounting (base plate installation)

Package Includes:

• GEYA GATS-W8-632P Automatic Transfer Switch

• User Guide / Original Packaging

Tags: geya, ats, automatic transfer switch, gats-w8, protected ats, 63a ats, cb class ats, ac-33ib, screw mount switch, single phase ats
