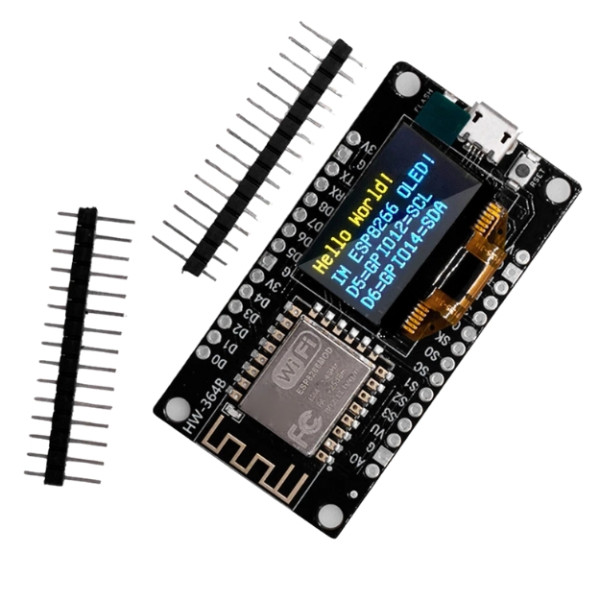

ESP8266 WiFi module with OLED 0.96" display HW-364a

The ESP8266 module with 0.96" OLED display HW-364a combines powerful Wi-Fi capabilities with a convenient graphical interface. It is suitable for creating IoT projects, home automation, data monitoring, and other smart solutions. The built-in OLED display simplifies information output and device control.

• Microcontroller: ESP8266
• Display: OLED 0.96", resolution 128x64
• Interfaces: Wi-Fi 802.11 b/g/n, GPIO, I2C, SPI, UART
• Power supply: 3.3V
• Protocol support: TCP/IP, UDP, HTTP, MQTT

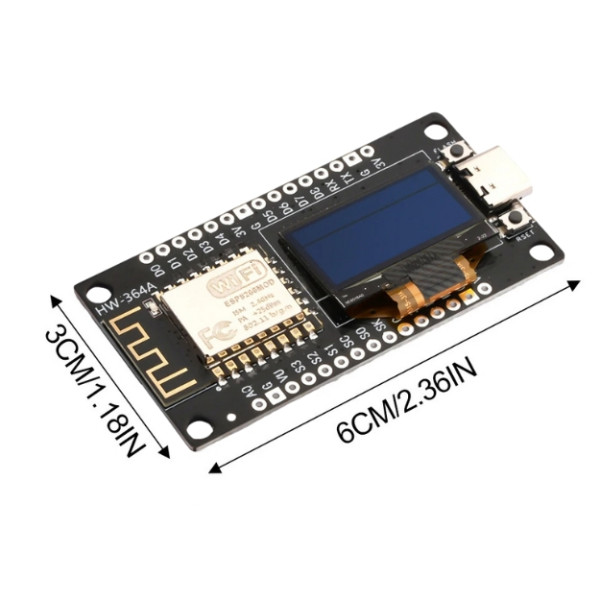

• Dimensions: 1.18IN x 2.36IN  (3cm x 6cm)
• Features: deep sleep mode support for power saving

To output an image to a basic OLED display, use the following parameters:

#define SCREEN_ADDRESS 0x3C // If this address does not work, scan the device addresses

#define OLED_SDA 14 // D6

#define OLED_SCL 12 // D5

Libraries for working with a graphic display:

Adafruit SSD1306

U8g2

Application: The module can be used in IoT projects, smart home systems, monitoring systems, remote control, and DIY electronics.
