Combined buck/boost converter XL6019 DC-DC 5-32V - 1.3-35V

Combined Buck/Boost Converter XL6019 DC-DC 5-32V - 1.3-35V 1.5A

The combined buck/boost converter XL6019 DC-DC is designed for efficient voltage conversion in a range from 5V to 32V input and 1.3V to 35V output. This versatile module allows for stabilization and regulation of the output voltage, providing a maximum output current of up to 1.5A. Its compact size of 49 mm x 23.4 mm x 11.4 mm makes it convenient for integration into various projects.

Advantages:

• Wide Input and Output Voltage Range: Enables operation with various power sources and obtaining the required output voltage.
• High Efficiency: Ensures minimal energy loss during voltage conversion.
• Versatility: Suitable for various applications, including powering portable devices, charging batteries, and electronic projects.
• Adjustable Output Voltage: Easily adjustable via potentiometer for precise voltage control.
• Protection: Built-in protection features against overload, short circuit, and overheating ensure safe operation.

Key Specifications:

• Type: Combined Buck/Boost Converter
• Input Voltage: 5V - 32V
• Output Voltage: 1.3V - 35V (adjustable)
• Maximum Output Current: 1.5A
• Efficiency: Up to 94%

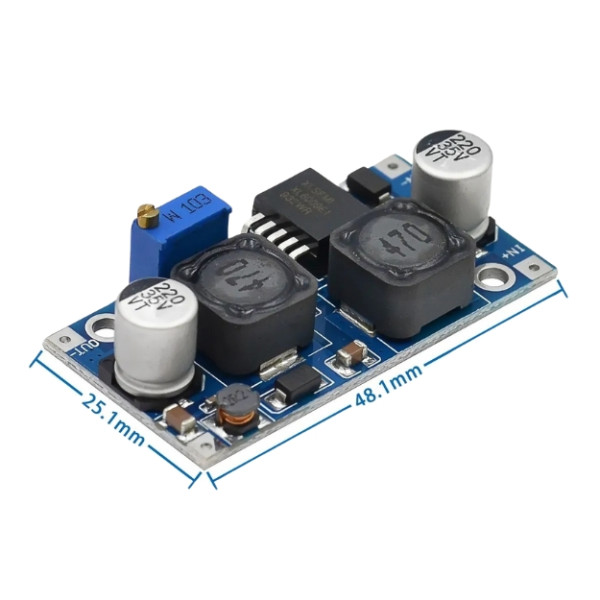

• Dimensions: 49 mm x 23.4 mm x 11.4 mm
• Weight: 25 g
• Operating Temperature: -40°C to 85°C
• Protection: Overload, short circuit, overheating

Applications:

Ideal for:

• Powering portable devices
• Charging batteries
• Voltage conversion for various electronic projects
• Stabilizing power in DIY projects
• Powering devices with varying input voltages

Features:

• Ease of Use: Easily integrates into various circuits due to its compact size and simple connection.
• Efficiency: High efficiency ensures stable voltage with minimal losses.
• Flexibility: Wide voltage range allows the module to be used in various conditions and projects.

The combined buck/boost converter XL6019 DC-DC is a reliable solution for voltage conversion, providing stable and efficient power for your electronic devices.
