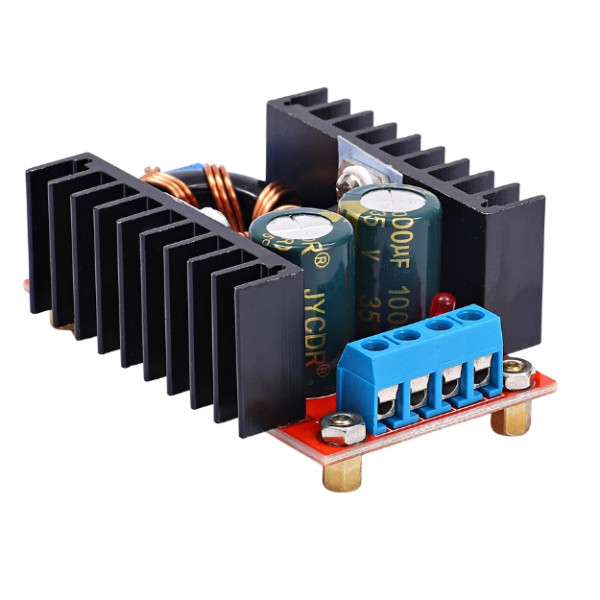

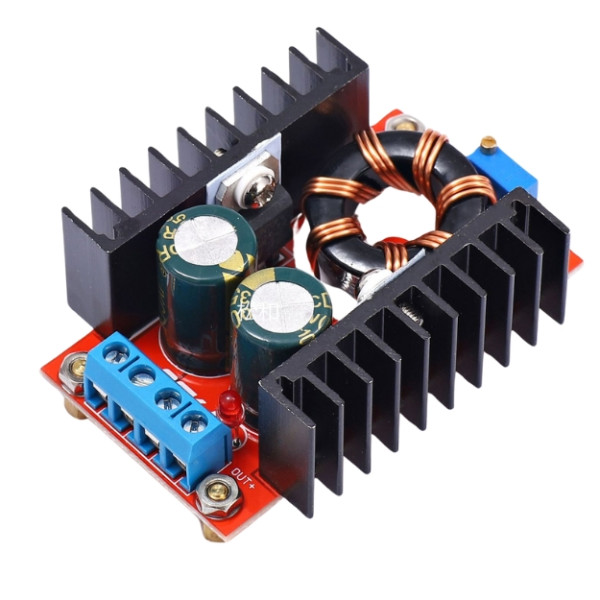

Boost Converter UC3843A 10-32V to 12-35V, 150W

Boost Converter UC3843A 10-32V to 12-35V, 150W

The boost converter based on the UC3843A chip is designed to convert an input voltage range of 10 to 32V into an adjustable output voltage from 12 to 35V. This module can provide a maximum power of up to 150W and features high conversion efficiency. Boost converters are widely used in power systems for electronic equipment, battery-powered devices, and solar energy systems.

Advantages:

• Wide Input Voltage Range: From 10V to 32V, allowing the module to be used with various power sources.
• Adjustable Output Voltage: From 12V to 35V, easily adjustable to meet different requirements.
• High Power: Supports up to 150W, suitable for powering high-load applications.
• High Efficiency: Provides efficient energy conversion, minimizing losses.
• Overload Protection: Built-in protection functions prevent damage to the module and connected devices during overloads.

Key Specifications:

• Type: Boost Converter
• Model: UC3843A
• Input Voltage: 10V - 32V
• Output Voltage: 12V - 35V (adjustable)
• Maximum Power: 150W
• Maximum Output Current: 6A (when input voltage > 12V)
• Efficiency: Up to 95%
• Switching Frequency: 100 kHz
• Dimensions: 60 mm x 37 mm x 22 mm
• Weight: 50 g
• Protection: Overload, short circuit, overheating
• Operating Temperature: -20°C to +85°C

Applications:

Ideal for:

• Powering Electronic Equipment: Used in power systems for various electronic devices.
• Battery Systems: Suitable for voltage boosting in battery-powered systems.
• Solar Energy: Applied in systems where voltage boosting from solar panels is required.
• Automotive Systems: Used in automotive systems for voltage stabilization and boosting.

Features:

• Flexible Use: Easily adjustable output voltage allows the module to be used in various applications.
• Compact Size: Small dimensions make it easy to integrate the converter into limited spaces.
• Reliability: Built-in protective functions ensure long-lasting and safe operation.

The boost converter UC3843A 10-32V to 12-35V, 150W is a powerful and reliable solution for voltage conversion, providing high efficiency and stable performance.
