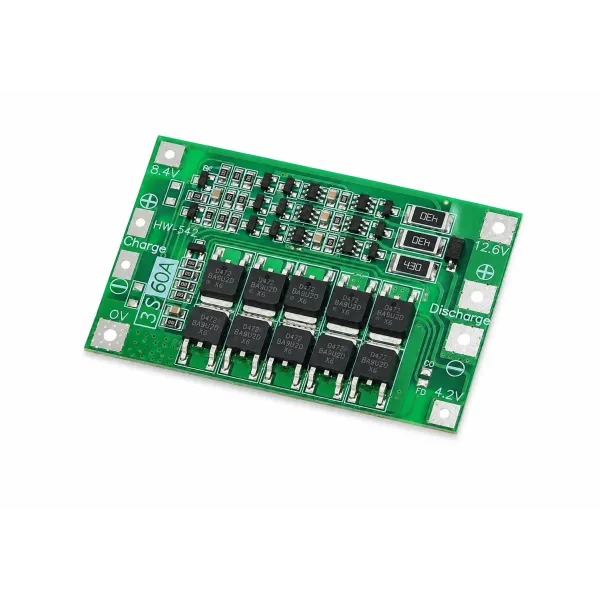

BMS 3S 60A Battery Protection Board with Balancing for Li-Ion Batteries

The BMS 3S 60A protection board is designed for 3-series lithium battery packs. It provides safe charging and discharging by protecting battery cells against overcharge, over-discharge, overcurrent, and short-circuit conditions.

The integrated balancing function monitors the voltage of each cell and helps maintain equal charge levels across the battery pack, improving battery performance, safety, and lifespan.

Suitable for 18650, 21700, and other lithium-ion battery packs with a nominal voltage of 11.1V and a full-charge voltage of 12.6V.

Features:

• Designed for 3S battery packs (11.1V / 12.6V)
• Overcharge protection
• Over-discharge protection
• Short-circuit protection
• Overcurrent protection
• Cell balancing function
• High current load capability

Specifications:

• Type: Battery Management System (BMS)
• Battery configuration: 3S
• Battery type: Li-Ion / LiMn / Li-Polymer
• Maximum charge voltage: 12.6V
• Nominal battery voltage: 11.1V
• Maximum discharge current: 60A
• Balancing function: Yes
• Short-circuit protection: Yes
• Overcurrent protection: Yes

Package Includes:

• BMS 3S 60A Board
• Packaging
